CLUB DALI
USB TO DALI & DMX
USB TO DALI & DMX

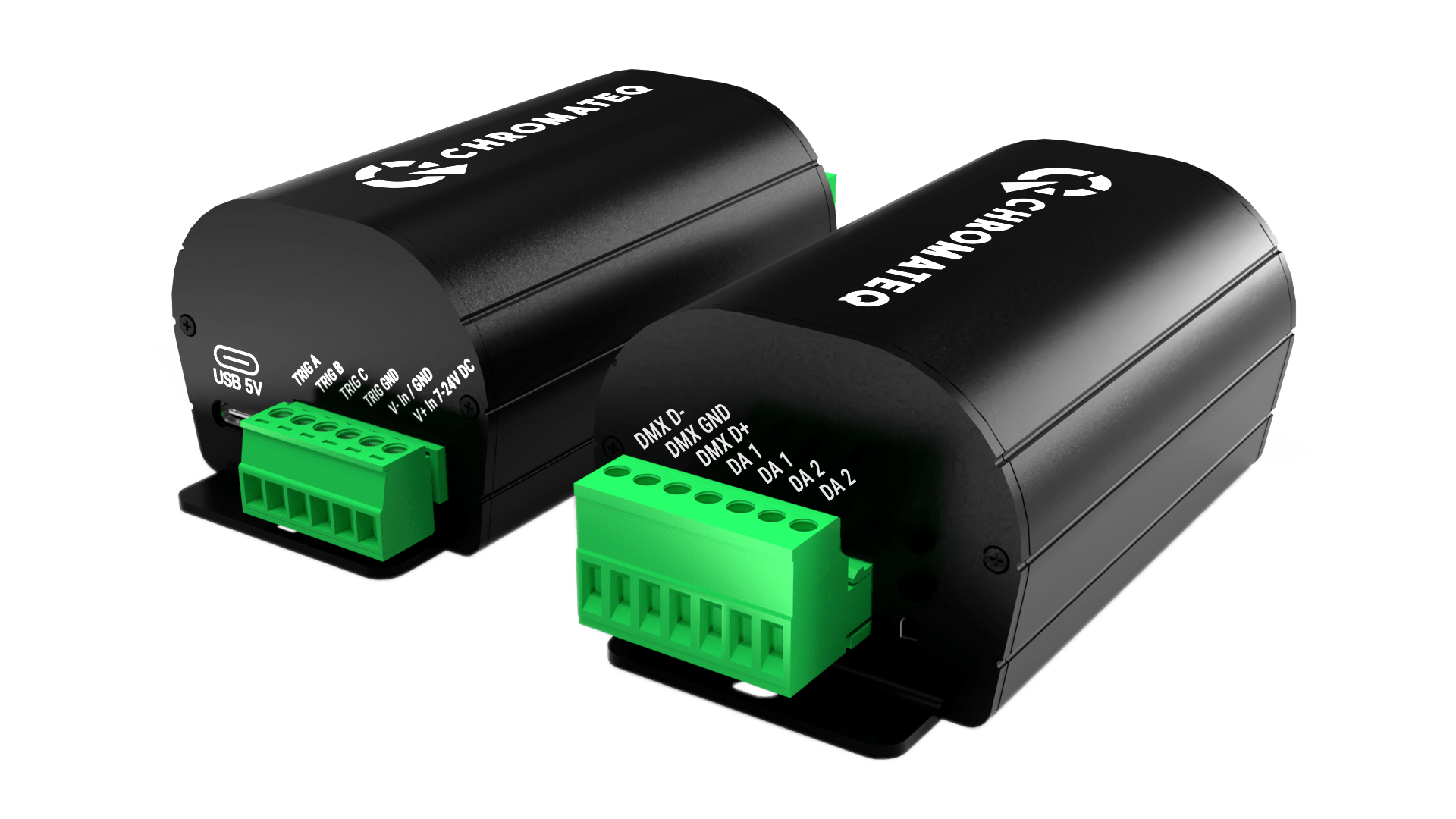

CLUB DALI is a USB-to-DALI stand-alone interface with both DALI and DMX512 (RDM) ports, used as a lighting controller for DALI lighting installations and projects. Connected to a computer running Chromateq PRO DMX 2 software, it converts data into DALI and DMX formats, supporting DALI DT6 and DT8 commands for commissioning, device discovery, and configuration of up to 64 IDs, 16 groups, and 16 scenes per device.

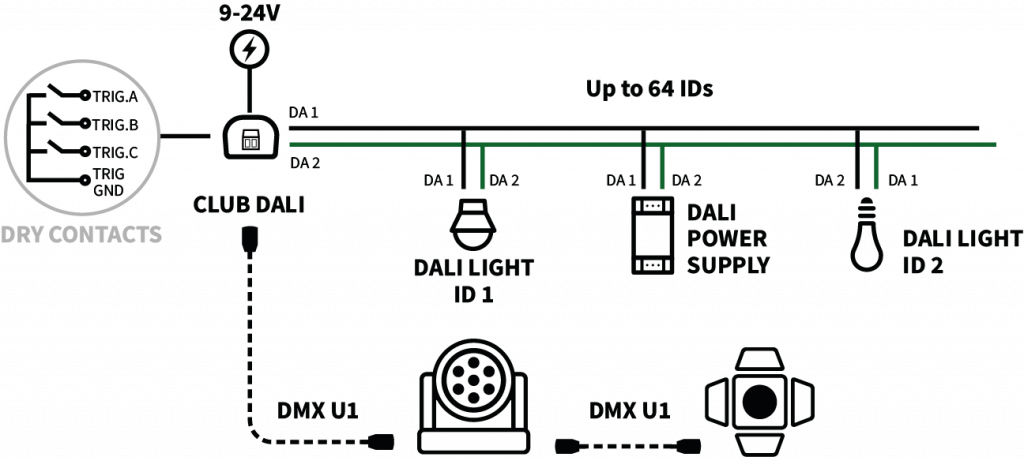

In stand-alone mode, CLUB DALI backs up a show to its internal memory and plays back DALI and DMX commands and data without a computer, running up to one DMX scene and one DALI scene at the same time. DMX input can trigger playback in both software and stand-alone mode; smart dry contacts (up to 3) trigger stand-alone playback.

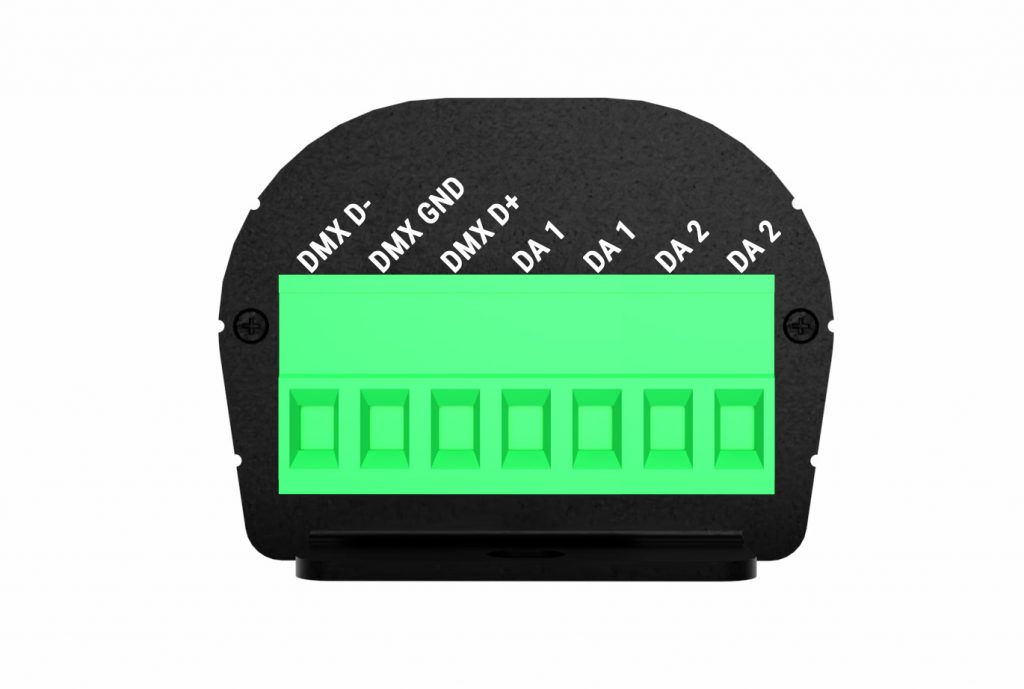

Screw Terminal Block
1. DMX Data -
2. DMX Ground
3. DMX Data +
4. DALI 1
5. DALI 1
6. DALI 2
7. DALI 2

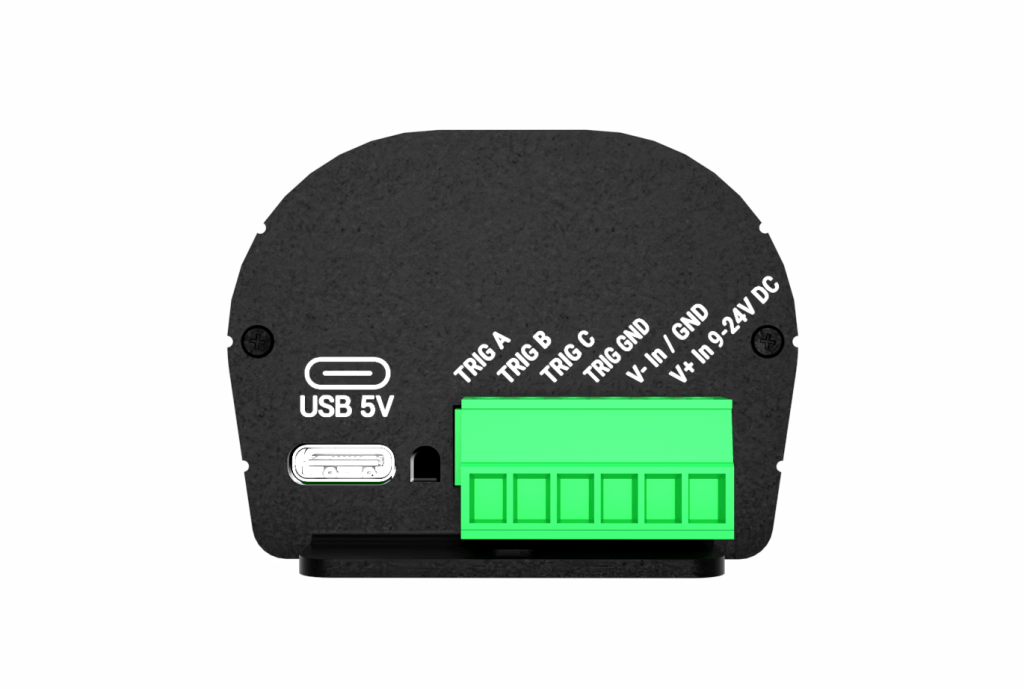

Screw Terminal Block
1. Trigger A
2. Trigger B
3. Trigger C
4. Trigger Ground
5. V- Input / Ground
6. V+ Input / 9-24 V DC
Controls and configure up to 64 IDs,16 groups and save 16 scenes. Compatible with DT6 and DT8 fixtures. Commissioning, discovery and full fixture configurations.
Includes 1 DMX In/Out supporting 512 channels. Fully compatible with RDM-DMX for bidirectional communication with professional lighting equipment.
Supports DMX input, dry smart contacts (x3), allowing flexible show activation and control.
Features 64Mb internal memory to store and replay shows without a computer. Ideal for stand-alone lighting installations with up to 10 hours or 20,000 steps capacity.
Powered via USB 5V or external 9–24V DC supply, compatible with standard sources. Includes high-voltage protection: 200V, 10A on DALI, 3KV on DMX and 1.5KV on power input for safe, reliable operation.
3 year international warranty. FCC, CE and RoHS certifications.

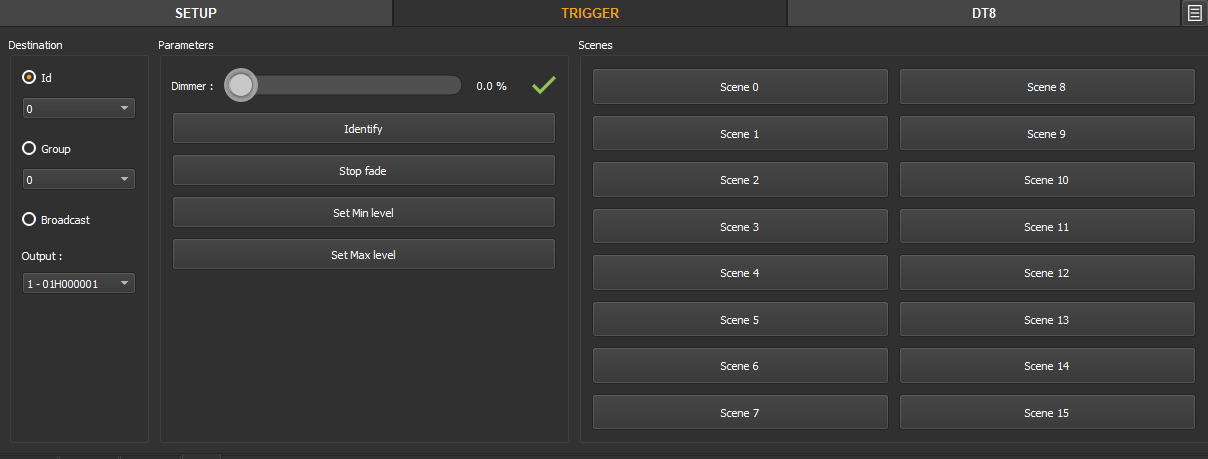

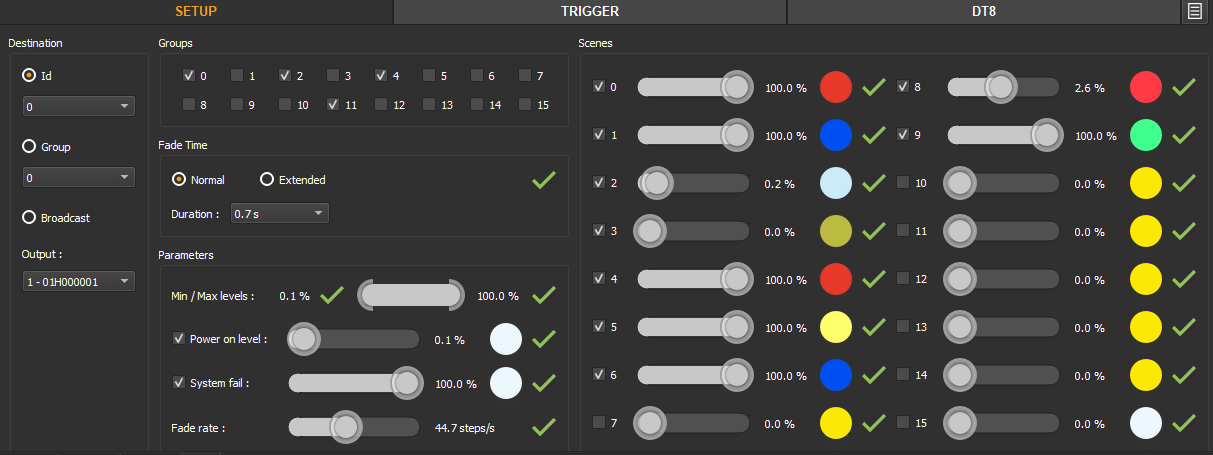

PRO DMX 2 propose a DALI windows for controls, DALI setting and fixture configuration. Several options are possible.
Automatic Discovery of all DALI devices connected on the line.
Commissioning: assigning a unique ID to each connected fixture.
Group management to organise zones, group fixtures and simplify controls.
Creation of DALI scenes (DT7 intensity, DT8 colour) with storage directly inside the interface.
Triggers for manual activation, sequencing or stand-alone operation once saved in the CLUB DALI.

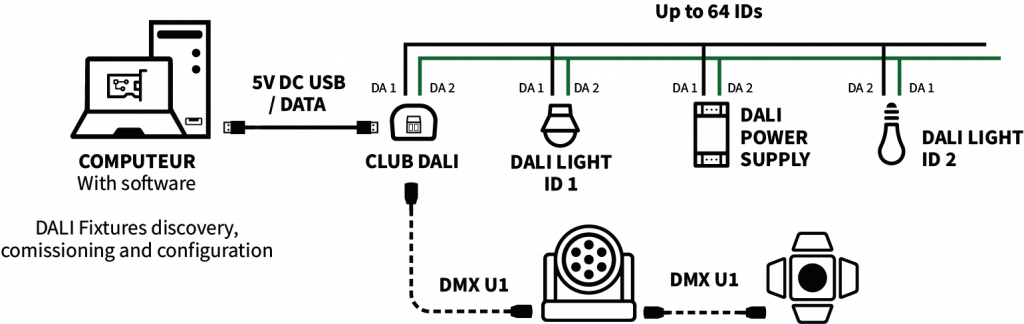

The CLUB DALI can control DALI and DMX simultaneously, providing a hybrid solution ideal for mixed or evolving installations.
The DIN Rail Holder Kit is an easy and convenient mounting solution designed to easily attach any Chromateq devices to a standard DIN rail. Engineered for integrators, installers, and technical environments, it ensures a clean, secure, and reliable installation inside electrical cabinets, control panels, and industrial systems.
It is fully compatible with all Chromateq products, providing fast and seamless integration for projects requiring DIN rail mounting. The DIN holder is attached to the back of the case using a strong, sturdy double-sided adhesive (3M).
Available upon request when placing your order.
Price of the DIN Kit: 20€ (excluding VAT).
Lighting control software
Our new DMX controller – CLUB DALI can be integrated into scalable control systems designed for live performance or fixed installation, or deployed individually without a computer as an elegantly simple but sophisticated stand-alone control solution.
All our Lighting Management Software are Free and require a Chromateq™ Device or Interface to transform your computer into an impressively adaptable and effective DMX Controller.
Hardware & DMX (Software & Live)
CLUB DALI
Retail Price (excluding VAT)
€259 / $309
DMX channels with PRO DMX 2
512 (In/Out) per device
RDM (dual DMX data directions, DMX addressing)
Yes
DALI Out with PRO DMX 2
Up to 64 IDs, 16 groups, 16 Scenes, commissioning, discovery, configuration
USB-C compliance
Yes (5V. DC, 0.2A)
Upgradable on site
Yes, (Software Art-Net Universe)
Max Device Connected
x10 by USB
International Warranty
3 Years
Dimensions (mm / in)
H : 103 (4.06 in ) / W : 50mm(1.96in) / D : 37,5mm (1.47in)
Weight / Operating Temperature / Certification
0.1 Kg (0.22 lb) / -40 to +85 C° / CE, FCC, RoHS
Stand-alone
DMX Out (16-bit channels)
512 out
DMX In
512 in for triggers
DALI Out
Up to 64 IDs, 16 groups, 16 Scenes per device
Power
Input: 5V, 0.1A (USB-C) / 9-24V DC, (connectors), 0.4W
Memory (Stand-alone)
Memory Step capacity
~ 20000 (8 MB)
Max Scene capacity
512
Play Scene Stand-alone
2 (1 DMX, 1 DALI)
Triggers (Stand-alone)
Smart Contacts (on, on/off, release, commands)
3 pins (Trigger on Ground)
DMX In
Yes
Software
CLUB DALI
PRO DMX 2, STUDIO DMX (DMX channels)
512 (In/Out) per device
Audio Timeline
Optional
WI-LIGHT 2 - Mobile APP / API
Software control only from a mobile and LAN
Worldwide Technical Support
Yes, English, French, Chinese
Art-Net, sACN, DVI, DMX in/Out
ART-NET, sACN Output (PRO DMX 2 / PIXXEM)
Optional (max 64U / 512U)
DMX Input, control and Record
512
ART-NET, sACN Input, control, triggers, record
Optional (max 16U)
DVI supported resolution (PIXXEM)
Optional (max 1920*1080)
Triggers
MIDI, RS232, Wi-Light 2, UDP, Keyboard, Hyperlinks
Yes
MIDI Control, Audio BEAT, BPM, Wi-Light 2, UDP
Yes
User Interface customization
Yes
