SPLIT RDM
DMX SPLITTER AND BOOSTER
The quick and reliable solution for successful lighting installations

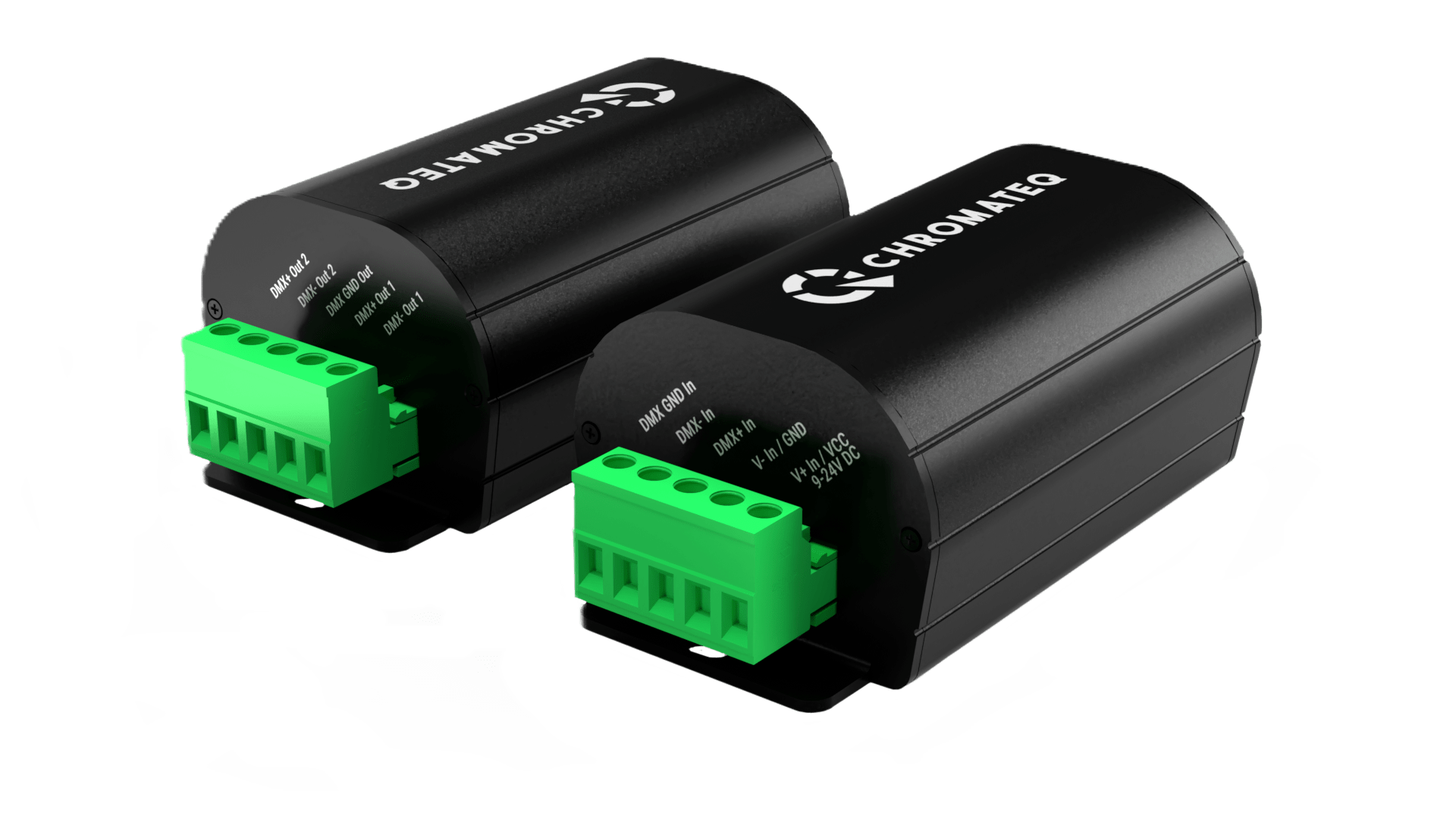

Chromateq’s mini DMX-RDM distributor, with its tiny size, small integration space requirement, power protections, the RDM capacity and duplicating the signal, is the essential tool for all your lighting installations and DMX wiring. Quick RDM messages are also transmit in both signal directions.
The splitter device takes signal from a DMX point to raise the data signal into 2 identical output points. DMX signals are boosted to transmit data to a longer distance on your DMX installation and long distance wiring. The high voltage protections can secure the installation and protect your lighting and all control equipment. Fast RDM signals are transmit in both directions.
SPLIT RDM are used in lighting installations to protect the DMX lines from lightning, surges and high currents on the DMX cables coming from the fixtures. The SPLIT RDM also is recommended when the DMX signal gets weak, for example after 50, 100 or 150 meters of DMX cable or when there are several fixture connected, like 15, 20 or more units on the same DMX line.
Power LED

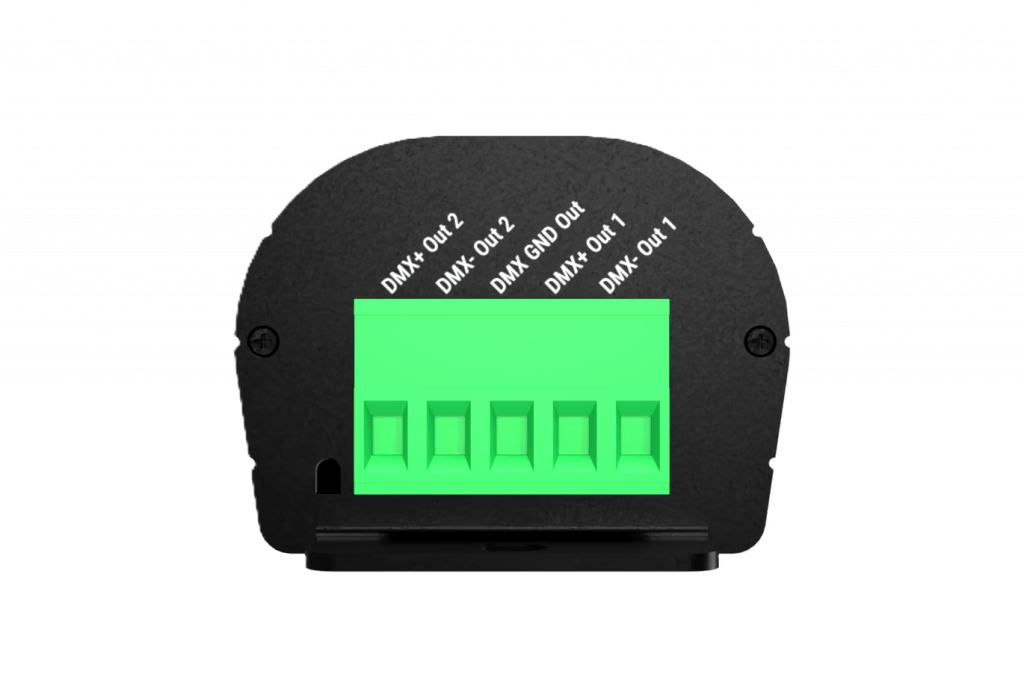

Screw Terminal Block
1. DMX+ Out 2
2. DMX- Out 2
3. DMX GND Out
4. DMX+ Out 1
5. DMX- Out 1

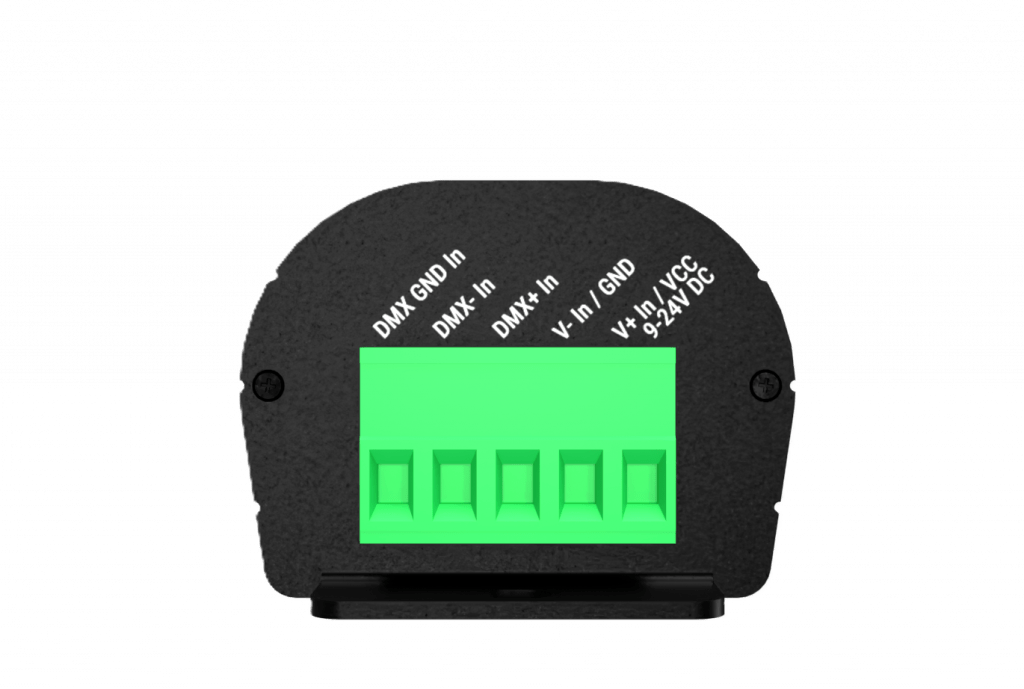

Screw Terminal Block
1.DMX GND In
2. DMX- In
3. DMX+ In
4. V- In / GND
5. V+ In / VCC 9-24V
Compatible RDM-DMX
Can transmit data in both directions with all RDM-DMX compatible equipment. Screw Terminal blocks for all type of wire.
Attractive Price
Cost effective and economic DMX-RDM accessory. 5 and 10 pcs discount prices.

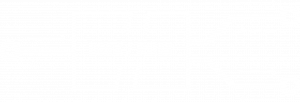

Unloads the DMX lines
Amplify and boost the DMX signal and no data loss. 1 DMX input + 2 DMX Outputs.
Easy and quick integration
Compact case size, screw Terminal Block for all types of wire, no software or hardware configuration needed.
Standard power supply
9 to 24V DC input for all standard power sources compatibility, high voltage protection, 9V Power Supply Unit included.
International Warranty
1 year international warranty.
Euro or US Power Supply Unit included
SPLIT RDM Wiring diagram
Main Features
HARDWARE
SPLIT RDM
Retail Price (excluding VAT)
€129 / $149
DMX output
2x512 channels (insulated + boost)
DMX-RDM Ports
DMX 512: 1 In + 2 Out
Connector
Screw terminal blocks
Protection and insulation
3KV on DMX, 1.5KV, 0.3A on DC Power
Power supply unit (PSU, included)
9V DC, 0.5A EURO; 100-240V~50/60Hz
Power / Consumption
0,5 W
High Voltage Protection
Yes, fuses, diodes, phototransistor, capacitive insulation barrier, isolated DC-DC converter
Dimensions (mm / in)
H : 103 (4.06 in ) / W : 50mm(1.96 in) / D : 37,5mm (1.47 in)
Net Weight
0.1 Kgs
Gross weight
0.16 Kgs
International Warranty
1 Years
