DMX SPI
DMX TO SPI CONVERTER
DMX TO SPI CONVERTER

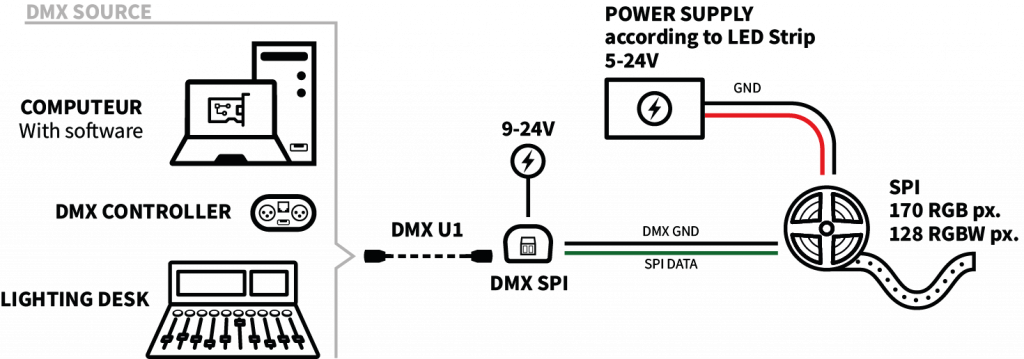

The DMX SPI is a compact and reliable DMX‑to‑SPI converter designed for effortless integration into any LED installation. It transforms standard DMX512 signals into SPI pixel data with precision, driving up to 170 RGB or 128 RGBW pixels like a traditional LED drivers but with the possibility to reach up to 3072 channels. Its small footprint, broad SPI compatibility, and professional‑grade performance make it the ideal choice for LED strips, and creative lighting projects.
Screw Terminal Block
1. DMX -
2. DMX Ground
3. DMX +
4. SPI Clock
5. SPI Data
Infrared Receiver LED
Screw Terminal Block
1. Trigger A
2. Trigger B
3. Trigger C
4. Trigger Ground
5. V- Input / Ground
6. V+ Input / 9-24 V DC
512 DMX channels input to 3072 SPI channels output converter. In standard SPI LED driver the device can support 170 RGB or 128 RGBW pixels from a DMX source.
Compatible with main LED protocols such as WS2812, TM, UCS and more.
Data is transmitted via SPI Data+ and CLK, with no power management.
The device can group SPI pixels together with no upper limit. It is possible to setup a DMX start address and repeat a number of pixels on 3072 channels.
Powered via USB 5V or external 9V–24V DC, it is compatible with standard power DC sources. Includes high-voltage protection: 3KV on DMX and 1.5KV on power input for safe, reliable operation.
With a tiny case, the CLUB SPI is really easy to integrate in any stand alone lighting projects (Boat, clothes, fournitures, etc...)
1 years of international warranty.
Worldwide technical support.
LED Driver, convert DMX to SPI
Hardware & DMX (Software & Live)
DMX SPI
Retail Price (excluding VAT)
€159
DMX channels
512 Ch. In per device
SPI Out (Data + Clock)
3072 ch. and 170 px. RGB at 15-25 fps
DMX to SPI converter (LED Driver)
Yes, 3072 channels, 170 RGB or 128 RGBW pixels
Options
Pixel Grouping, Start DMX address, Pixel repeating
USB-C compliance
Yes (5V. DC, 0.3A)
Upgradable on site
Yes (FULL + 512 Ch.)
Max Device Connected
x10 by USB
International Warranty
1 Years
Dimensions (mm / in)
H : 103 (4.06 in ) / W : 50mm(1.96in) / D : 37,5mm (1.47in)
Weight / Operating Temperature / Certification
0.1 Kg (0.22 lb) / -40 to +85 C° / CE, RoHS
Power Input
5V, 0.3A (USB-C) / 9-24V, 0.3A DC (T. Block connector)
